LaunchDarkly architecture

Overview

This topic gives a high-level explanation of LaunchDarkly’s platform architecture. You may want to read this topic if you are a developer considering implementing LaunchDarkly in your project, or an administrator who wants to understand how LaunchDarkly interacts with your app. If you’re an end user of the LaunchDarkly user interface (UI), you may not need to know what’s explained in this topic.

How LaunchDarkly connects to your application

Your application uses a LaunchDarkly SDK to connect to LaunchDarkly’s flag delivery network, and uses that connection to evaluate and serve specific feature flag variations to specific contexts with any attributes you specify. You can use context attributes to target individuals, device types, geographic regions, infrastructure components, operating system versions, and more. This is true regardless of whether LaunchDarkly serves the flag variation to a desktop, laptop, or mobile device. LaunchDarkly SDKs are available in dozens of languages. To learn more, read SDKs.

The flag delivery network is comprised of a third-party content delivery network (CDN) and LaunchDarkly's distributed core architecture components. LaunchDarkly's core architecture is secure and highly available, which enables fast responses and consistent experiences anywhere in the world.

How your application receives flag values

When you integrate a LaunchDarkly SDK with your app, flag evaluation can begin. After the application launches, the LaunchDarkly SDK initializes within that application code. When it initializes, the SDK pulls down the initial feature flag payload and makes it available to the application. This payload is stored and evaluated in your application memory, which lets the app serve feature flag variations near-instantly. The SDK then sends information about that flag evaluation back to LaunchDarkly. If LaunchDarkly is unreachable, the SDK can access in-app fallback flag values that you specify.

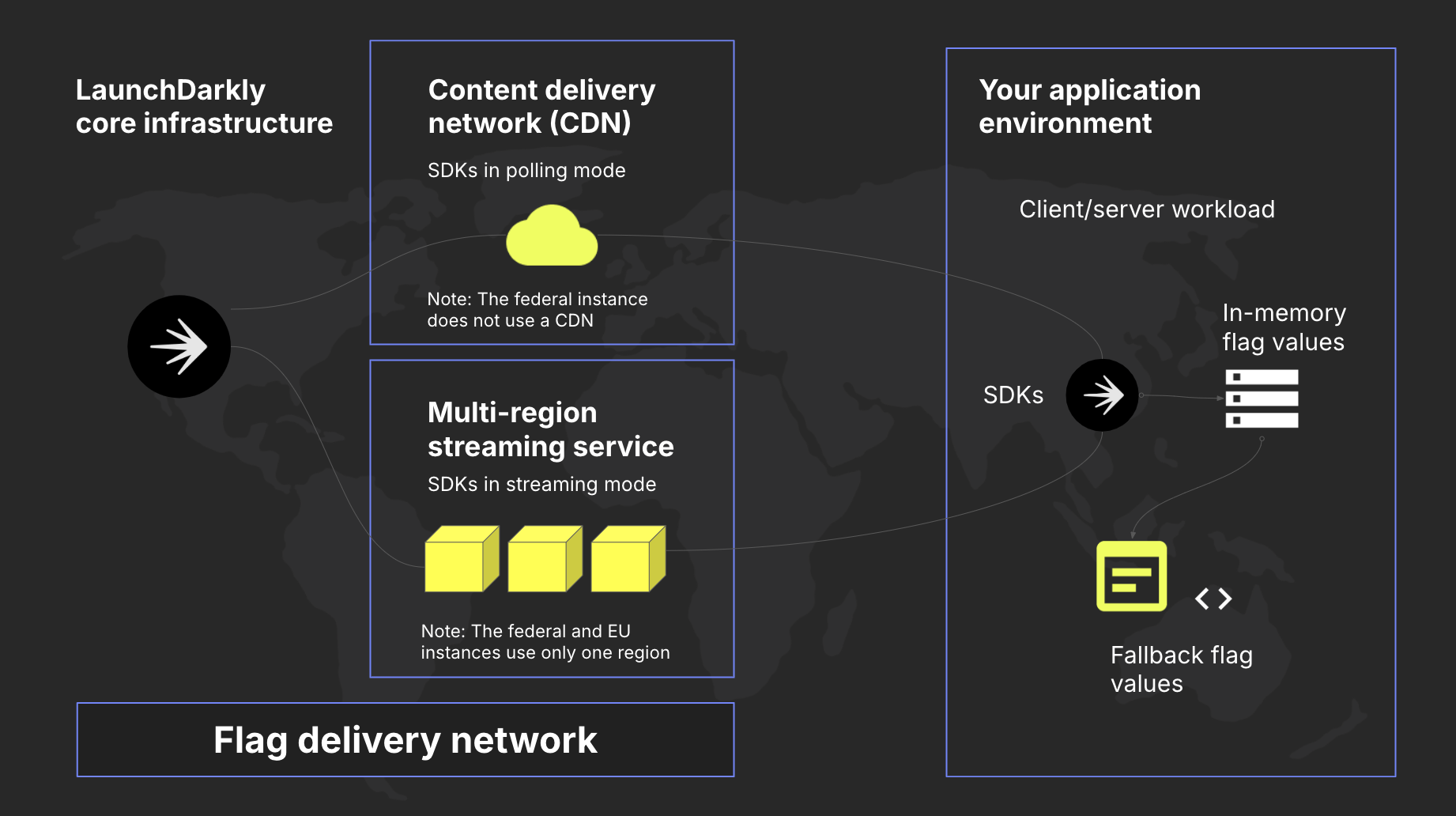

A diagram showing the end-to-end connection between LaunchDarkly's flag delivery network and your application. LaunchDarkly's Federal and EU instances have slightly different topology.

A diagram showing the end-to-end connection between LaunchDarkly's flag delivery network and your application. LaunchDarkly's Federal and EU instances have slightly different topology.

When you update a flag’s targeting rules, the update streams to all connected SDKs. Updates stream by default, but sometimes streaming isn’t available, or you do not want your app to maintain long-lived connections to LaunchDarkly. This may be the case if your applications are primarily available on mobile devices, where long-lived connections can consume their end users’ limited data. To support those use cases, LaunchDarkly SDKs can also use polling connections to send and receive flag updates.

There are several different types of LaunchDarkly SDKs that can connect your application to LaunchDarkly, including server-side SDKs, client-side SDKs, edge SDKs, AI SDKs, and more. Client-side SDKs also include SDKs that support mobile devices. To learn more about how each type of SDK works, read Client-side, server-side, and edge SDKs.

Optional components of a LaunchDarkly installation

In addition to LaunchDarkly’s built-in core architecture, two optional components are available for you to configure. You do not have to use either of these components, but if you do, you can use either or both. Whatever you choose, you install and configure the components, and you control the data that flows in or out of them.

The Relay Proxy is an optional component that provides a cache of flag values for a LaunchDarkly environment. To learn more, read The Relay Proxy.

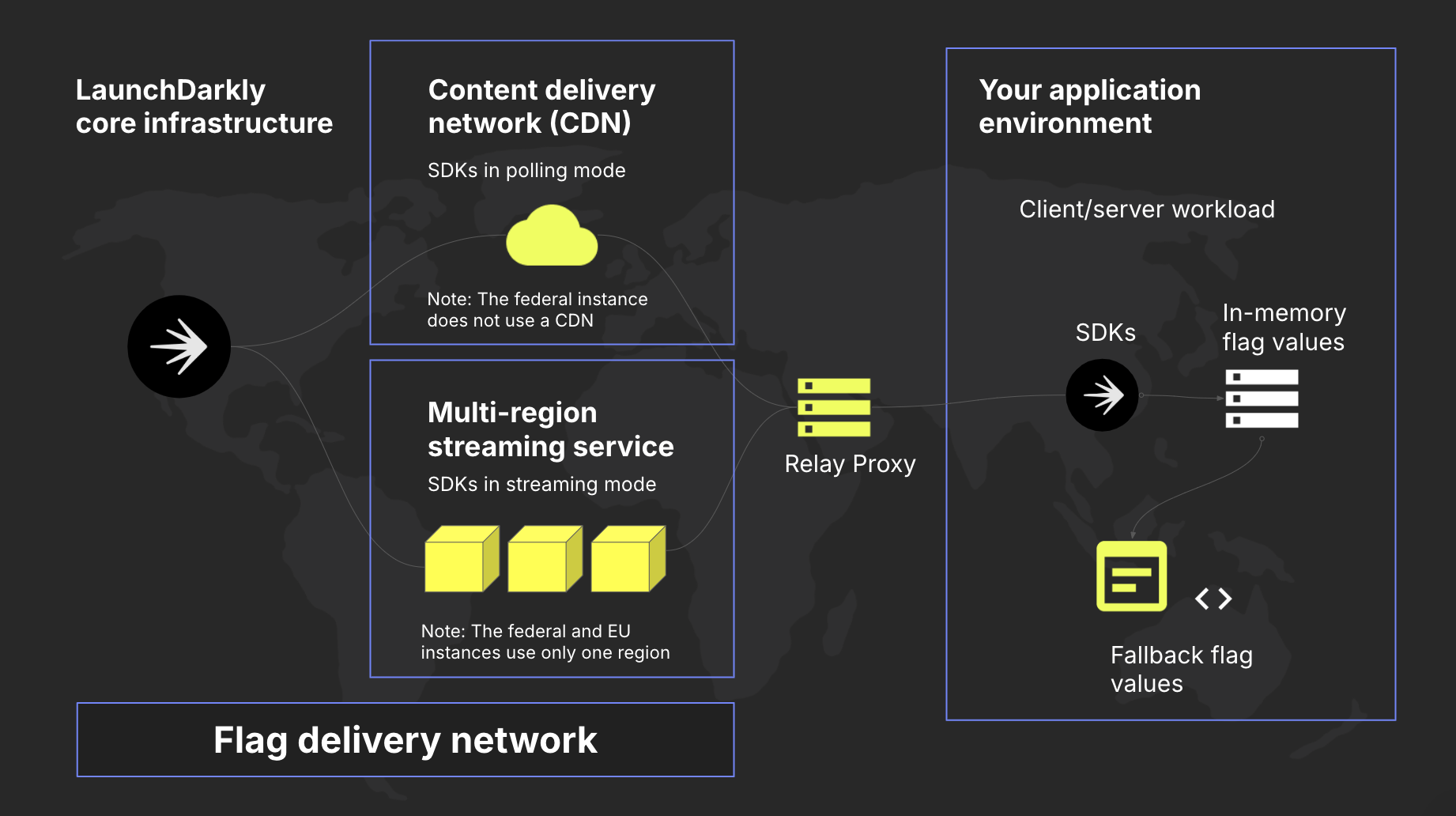

A diagram showing the end-to-end connection between LaunchDarkly's flag delivery network and your application, including an optional Relay Proxy. LaunchDarkly's Federal and EU instances have slightly different topology.

A diagram showing the end-to-end connection between LaunchDarkly's flag delivery network and your application, including an optional Relay Proxy. LaunchDarkly's Federal and EU instances have slightly different topology.

Data Export is an optional feature that allows you to stream event data to different destination services so you can analyze information using your preferred tools. To learn more, read Data Export.

A diagram showing the end-to-end connection between LaunchDarkly's flag delivery network and your application, including an optional Data Export destination. LaunchDarkly's Federal and EU instances have slightly different topology.

A diagram showing the end-to-end connection between LaunchDarkly's flag delivery network and your application, including an optional Data Export destination. LaunchDarkly's Federal and EU instances have slightly different topology.
