Creating multi-armed bandits

This topic explains how to set up and configure a multi-armed bandit (MAB) in LaunchDarkly.

Configuring a MAB requires several steps:

1. Creating the flag or AI Config and its variations,
2. Creating a metric,
3. Building the multi-armed bandit,
4. Turning on the flag or AI Config, and
5. Starting an iteration.

These steps are explained in detail below.

Prerequisites

Before you build a MAB, you should read about and understand the following concepts:

• Multi-armed bandits
• randomization units

Create flags or AI Configs

Before you begin a MAB, create a flag or AI Config with the variations you plan to optimize the performance of. You do not need to toggle on the flag before you create the MAB, but you do have to toggle flags on before you start an iteration. AI Configs are on by default.

To learn more, read Creating new flags, Creating flag variations, Create AI Configs, and Create and manage AI Config variations.

You cannot run a MAB on a flag if:

• the flag has an active guarded rollout
• the flag has an active progressive rollout
• the flag is in a running Data Export experiment
• the flag is in a running warehouse native experiment
• the flag is a migration flag

You can build and run multiple MABs on the same flag or AI Config as long as there is only one running MAB per targeting rule. You cannot run multiple MABs on the same rule at the same time.

Create metrics

Metrics measure audience behaviors affected by your flags. You can use metrics to track all kinds of things, from how often end users access a URL to how long that URL takes to load a page. You can reuse existing metrics in multiple MABs, or create new ones for your MABs.

To learn how to create your own new metric, read Metrics. LaunchDarkly also automatically creates metrics for AI Configs. To learn more, read Metrics generated from AI SDK events.

If you want to learn which variation performs better, it must be possible for that metric to measure something in all of the variations within the MAB. To learn more, read Metrics and flag variations.

Build multi-armed bandits

You can view all of the MABs in your environment on the Multi-armed bandits list.

To build a MAB:

1. Click Create, then choose Multi-armed bandits. A “Create multi-armed bandit” dialog appears.
2. Enter a Name.
3. Enter a Goal.
4. Click Create multi-armed bandit. The Design tab opens.
5. Choose a context kind to Randomize by.
6. Select a Metric.
   • A list of environments displays. It shows which environments have received events for these metrics. If no environments are receiving events, check that your SDKs are configured correctly.
   • Click Create to create and use a new metric.
7. Choose a Flag or AI Config.
   • Click Create flag or Create AI Config to create and use a new flag or AI Config.

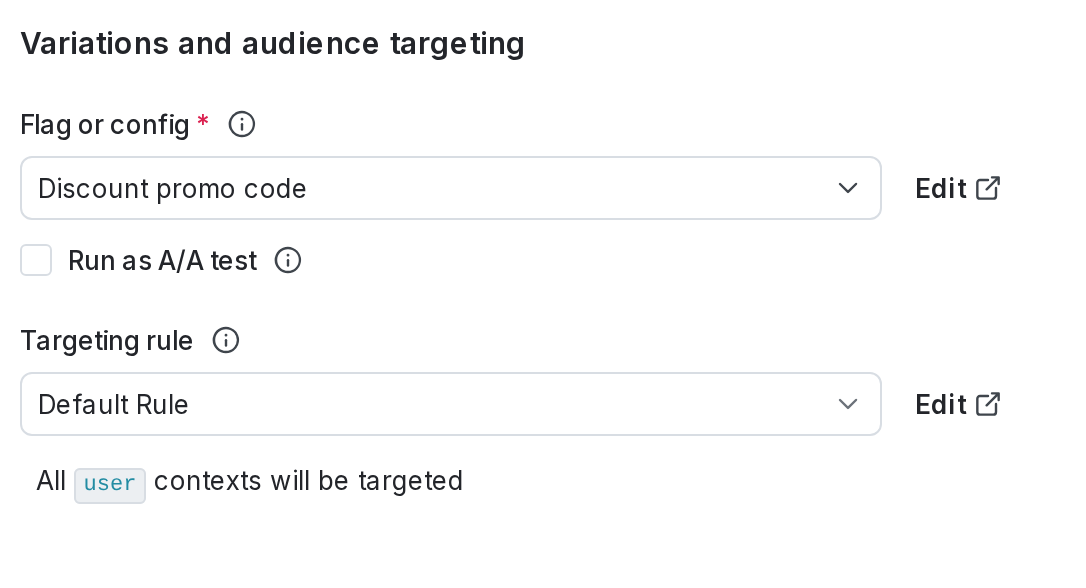

8. Choose a targeting rule for the Experiment audience.
   • If you want to restrict your audience to only contexts with certain attributes, create a targeting rule on the flag or AI Config you include in the MAB and run the MAB on that rule.
   • If you don’t want to restrict the audience for your MAB, run the MAB on the default rule. If the flag or AI Config doesn’t have any targeting rules, the default rule will be the only option.

9. (Optional) If you want to exclude contexts in this MAB from certain other MABs and experiments, click Add experiment to exclusion layer and select a layer.

10. Select a Variation served to users outside this experiment.
11. Select the Sample size for the MAB. This is the percentage of all of the contexts that match the MAB’s targeting rule that you want to include in the MAB.
12. Select your desired Update frequency. This determines how often the MAB shifts traffic to the leading variation.
13. By default, starting traffic is split equally between all of the included variations. If you want to exclude a variation from the MAB:
    • Click Edit next to “Variations split.”
    • For any variation you want to exclude, change the percentage to 0%.
    • Click Save audience split.
14. (Optional) If you want to include the MAB in a holdout, select a Holdout name.

15. Scroll to the top of the page and click Save.

If needed, you can save your in-progress MAB design to finish later. To save your design, click Save at the top of the creation screen. Your in-progress MAB design is saved and appears on the Multi-armed bandits list. To finish building the MAB, click on the MAB’s name and continue editing.

After you have created your MAB, the next step is to toggle on the flag. AI Configs are on by default. Then, you can start an iteration.

Turn on flags or AI Configs

For a MAB to begin recording data, the flag or AI Config used in the MAB must be on. Targeting rules for AI Configs are on by default. To learn how to turn targeting rules on for flags, read Turning flags on and off.

Start iterations

After you create a MAB and toggle on the flag, you can start a MAB iteration in one or more environments. AI Configs are on by default.

To start a MAB iteration:

1. Navigate to the Multi-armed bandits list.
2. Click on the environment section containing the MAB you want to start.

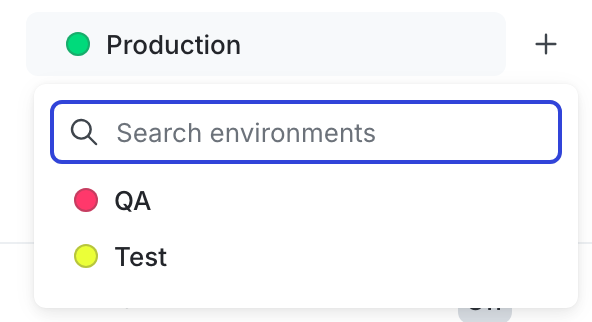

   • If the environment you need isn’t visible, click the + next to the list of environment sections. Search for the environment you want, and select it from the list.

3. Click on the name of the MAB you want to start an iteration for. The Design tab appears.

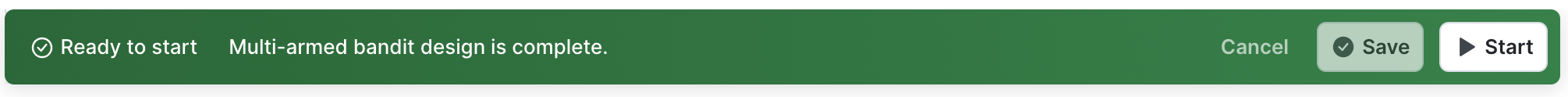

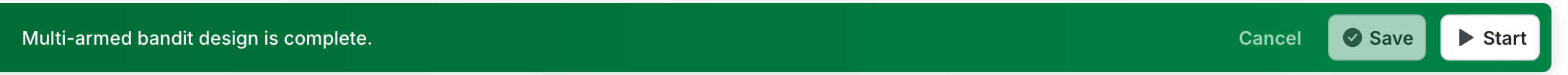

4. Click Start.
5. Repeat steps 1-4 for each environment you want to start an iteration in.

You can run a MAB indefinitely, allowing it to reallocate traffic as needed. If you are running a MAB on a time-boxed feature, such as a holiday promotion, then you can stop the MAB iteration when the promotion is over.

When you start an iteration of a MAB, LaunchDarkly sends the maintainer and anyone following the MAB an email, an in-app notification, and, if you have the Slack app integration configured, a Slack notification.

To learn more about starting and stopping iterations, read Starting and stopping experiment iterations.
